1.77 inch IPS display screen 128 * 160 vertical RGB interface 14PIN instrument control screen
Product Overview
1.1 Description
The YT018C014 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This TFT LCD has a 1.77 (4:3) inch diagonally measured active display area with 128x160 (128 horizontal by 160 vertical pixel) resolution.
1.2 Feature
-TN type for main TFT-LCD panel
-262K color by 8 bit R.G.B. signal input
-Structure COG+FPC+BL
General specifications
| No. | Item | Specification | Unit |
| 1 | LCD Size | 1.77 | inch |
| 2 | Panel Type | | - |
| 3 | Resolution | 128 x (RGB) x 160 | pixel |
| 4 | Display Mode | Transmissive,Normal White | - |
| 5 | Display Number of Colors | 262K | - |
| 6 | Viewing Direction | 12:00 O'clock | - |
| 7 | Contrast Ratio | 300 | - |
| 8 | Luminance | 180 | cd/m2 |

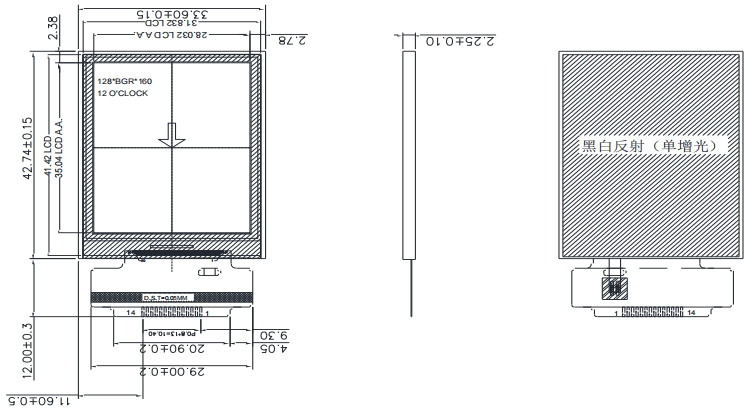

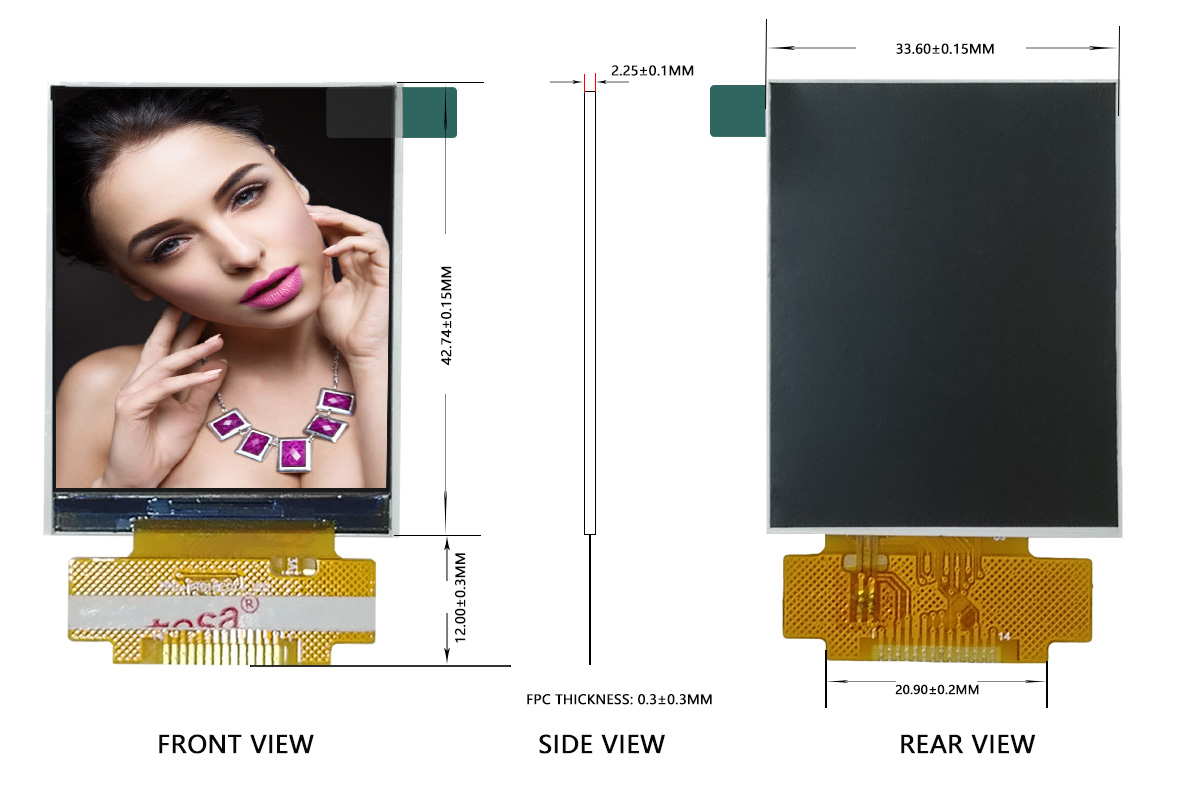

| 9 | Module Size | 33.60(H) x 42.74(V) x2.2(D) | mm |
| 10 | Active Area | 28.032(H) x 35.04(V) | mm |
| 11 | Pixel Pitch | 0.073(H) x 0.219(V) | mm |
| 12 | Weight | 10 | g |
| 13 | Driver IC | ST7735S | - |
| 14 | Driver IC RAM Size | - | bit |
| 15 | Light Source | 2 LEDs White | - |
| 16 | Interface | RGB | - |
| 17 | Operating Temperature | -20~70 | ℃ |
| 18 | Storage Temperature | -30~80 | ℃ |

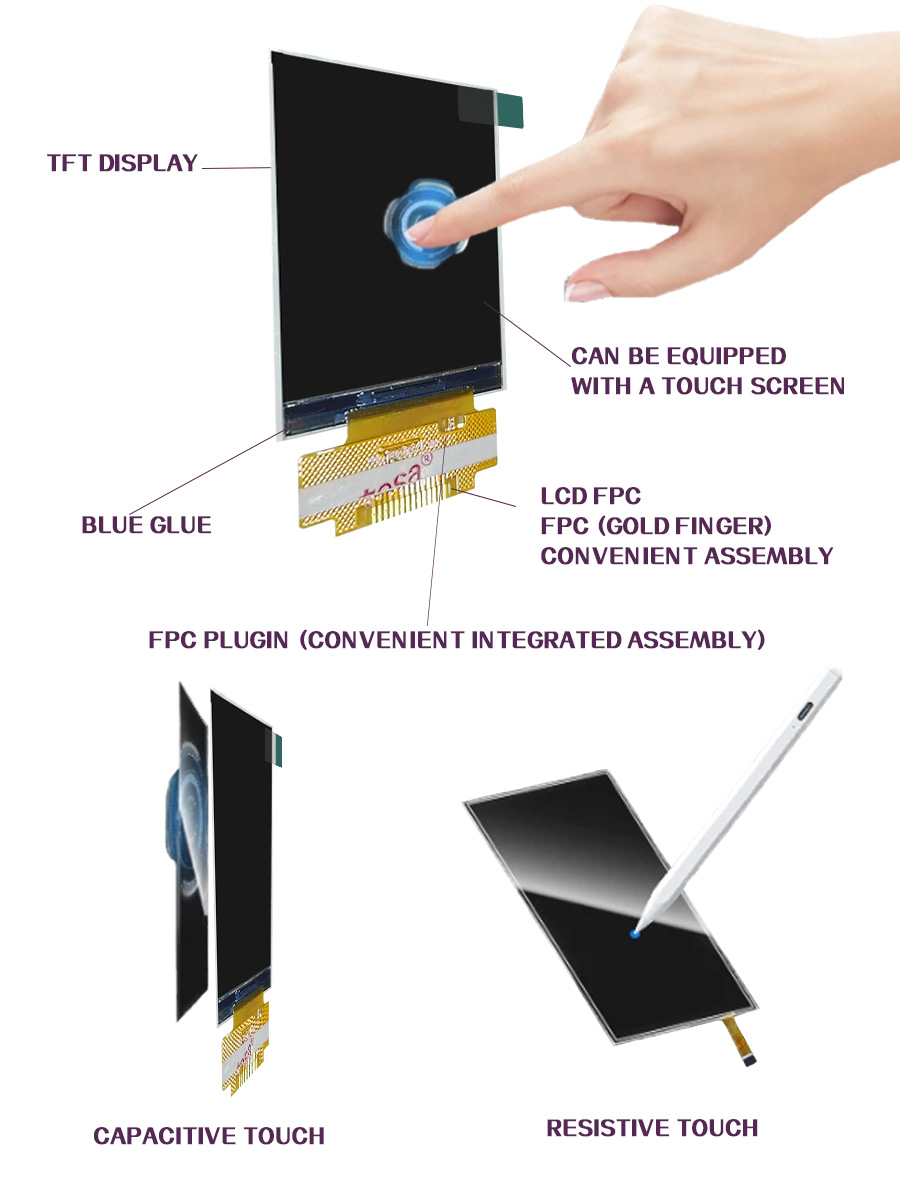

Product Details
Our factory
FAQ
Q1.What is your product range?
A1: We are 12 years of experience manufacturing TFT LCD and touch screen.
>0.96" to 32" TFT LCD Module;
>Bar type LCD screen up to 48 inch;
>High brightness LCD panel custom;
>Capacitive touch screen up to 55"
>4 wire 5 wire resistive touch screen;
>One-step solution TFT LCD assemble with touch screen.
Q2.Can you custom the LCD or touch screen for me?
A2: Yes we can provide the custom services.
>For the LCD display,backlight brightness and FPC cable can be customized;
>For the touch screen,we can custom the whole touch panel like the color,shape,cover thickness and so on according to the customer's requirement.
>NRE cost will be refunded after the total quantity reaches 1K pcs.
Q3.Which applications your products are mainly used for?
A3: Embedded system, Intercom system,Biometric,HMI,Smart home ,Robot,Hand-held PDA, after market automotive and etc.
Q4.What's the delivery time?
A4: >For samples order, 1-2weeks;
>For mass ordres,4-6weeks.
Q5.Do you provide free samples?
A5: For first time cooperation,samples will be charged,the amount will be returned at the mass order stage. In regular cooperation, samples are free. Sellers keep the right for any change.
Q6. Where can I get the datasheet, initialization code and other technical files ?
A6:Unfortunately, This can not Support upload/download the files for the time being, please contact with our sales.chat on Trade Manager or send me a email (dyh0707@foxmail.com), we will send the datasheet by mail.
