Visible Doorbell TFT LCD Display Screen 1.77inch 128 * 160 ST7735S Driver IC

ShenZhen Adia Techology CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

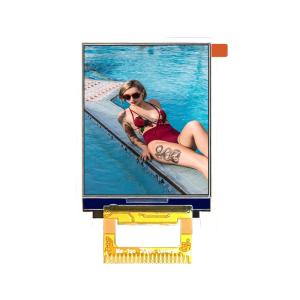

Visible Doorbell TFT LCD Display Screen 1.77inch 128 * 160 ST7735S Driver IC

Brand Name : Adia

Model Number : CM-177B64-16-06

Certification : RoHS

Place of Origin : china

MOQ : 10pcs

Price : USD 1-1.8/ PCS

Payment Terms : T/T

Supply Ability : 1k/m

Delivery Time : 20-25

Packaging Details : 50cm*50cm*60cm

LCD size : 1.77inch

Display Type : a-Si TFT

Resolution ratio : 128*RGB*160

Display color : 262K

pixel size : 0.51*0.0153mm

Interface : MCU

Drive IC : ST7735S

Backlight : 2-chips LED

Contact Now

1.77inch 128 * 160 ST7735S driver IC 20PIN MCU interface visible doorbell TFT LCD display screen

Product Overview

1.1 Introduction
The CM-177B64-16-06 is a Color Active Matrix Liquid Crystal Display with a back light system. The matrix employs a-Si Thin Film Transistor as a switching device. This TFT LCD has a 1.77 inch diagonally measured active display area with resolution (128 horizontal by 160 vertical pixels array).

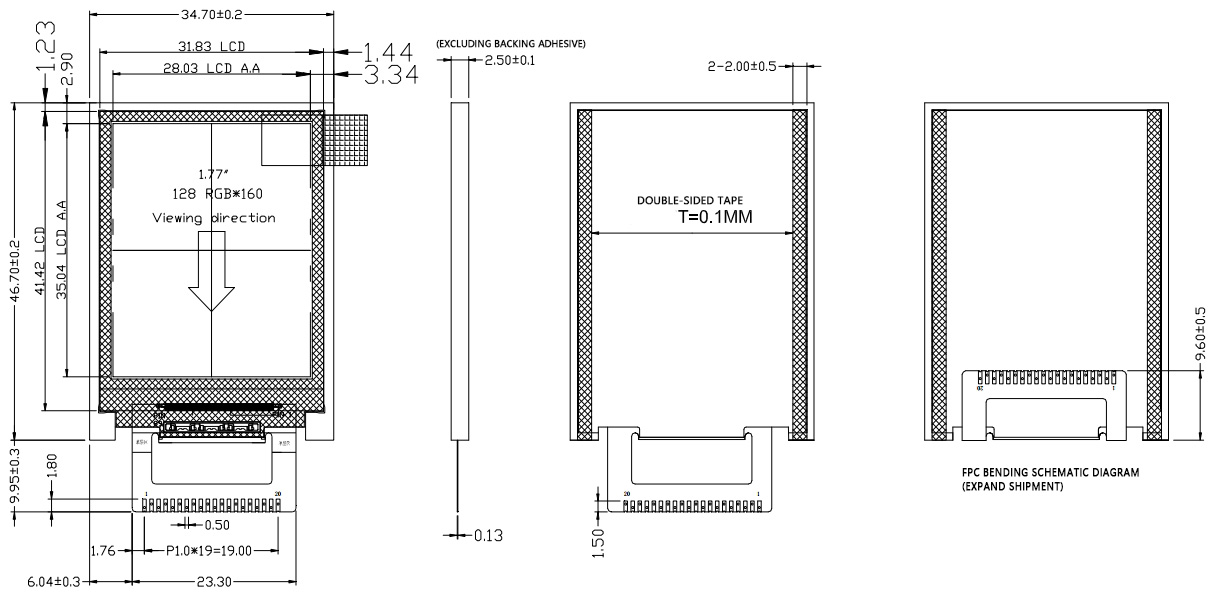

Product Size

Visible Doorbell TFT LCD Display Screen 1.77inch 128 * 160 ST7735S Driver IC

General specifications

No. Items Speciflcations Unit
1 Screen Diagonal 1.77 inch
2 Active Area (H x V) 28.03(H)*35.04(V) mm
3 Number of Pixels (H x V) 128*RGB*160 -
4 Pixel Pitch (H x V) 0.051(H)*0.0153(V) mm
5 Outline Dimension (H x V x D) 34.70(L)*46.70(H)*2.5(D) mm
6 Support Color 262K -
7 Viewing Direction 6 O’clock -
8 Interface MCU -
9 Backlight 2 white LEDs -
10 Drive IC ST7735S -
11 Operating temperature range -20~70
12 Storage temperature range -30~80

Product Details

Visible Doorbell TFT LCD Display Screen 1.77inch 128 * 160 ST7735S Driver IC
Visible Doorbell TFT LCD Display Screen 1.77inch 128 * 160 ST7735S Driver IC
Visible Doorbell TFT LCD Display Screen 1.77inch 128 * 160 ST7735S Driver ICVisible Doorbell TFT LCD Display Screen 1.77inch 128 * 160 ST7735S Driver ICVisible Doorbell TFT LCD Display Screen 1.77inch 128 * 160 ST7735S Driver IC

FAQ

Q1.What is your product range?

A1: We are 12 years of experience manufacturing TFT LCD and touch screen.

>0.96" to 32" TFT LCD Module;

>Bar type LCD screen up to 48 inch;

>High brightness LCD panel custom;

>Capacitive touch screen up to 55"

>4 wire 5 wire resistive touch screen;

>One-step solution TFT LCD assemble with touch screen.

Q2.Can you custom the LCD or touch screen for me?

A2: Yes we can provide the custom services.

>For the LCD display,backlight brightness and FPC cable can be customized;

>For the touch screen,we can custom the whole touch panel like the color,shape,cover thickness and so on according to the customer's requirement.

>NRE cost will be refunded after the total quantity reaches 1K pcs.

Q3.Which applications your products are mainly used for?

A3: Embedded system, Intercom system,Biometric,HMI,Smart home ,Robot,Hand-held PDA, after market automotive and etc.

Q4.What's the delivery time?

A4: >For samples order, 1-2weeks;

>For mass ordres,4-6weeks.

Q5.Do you provide free samples?

A5: For first time cooperation,samples will be charged,the amount will be returned at the mass order stage. In regular cooperation, samples are free. Sellers keep the right for any change.

Q6. Where can I get the datasheet, initialization code and other technical files ?

A6:Unfortunately, This can not Support upload/download the files for the time being, please contact with our sales.chat on Trade Manager or send me a email (dyh0707@foxmail.com), we will send the datasheet by mail.
